Compact Ultrasonic Battery Tab Welding Machine for Pouch & Cylindrical Cell Assembly

Name: Compact Ultrasonic Battery Tab Welding Machine for Pouch amp Cylindrical Cell Assembly
Brand: ACEY
Price: 4800 USD

Quality Compact Ultrasonic Battery Tab Welding Machine for Pouch & Cylindrical Cell Assembly for sale

Brand Name : ACEY

Model Number : ACEY-USW-1

MOQ : 1 Set

Price : USD 4800~5420/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Ultrasonic frequency : 40KHz (automatic tracking)

Drive form : Pneumatic

Control box size : L360×W480×H200mm

Pneumatic : About 60Kg

Working voltage : AC220V/50Hz

Welding time : 0~1S

Place of Origin : China

Warranty : 1 Year Warranty With Lifetime Support

Certification : CE

Packaging Details : Plywood Case

After-sales Service : 24/7 Technical Support

Contact Now

Compact Ultrasonic Battery Tab Welding Machine for Pouch & Cylindrical Cell Assembly

Product Overview

The ACEY-USW-1 is an ultrasonic metal spot welding machine primarily used for metal bonding in winding and laminating applications. Its compact footprint, elegant appearance, and intuitive operation are complemented by a sturdy structure, guaranteeing reliable and safe performance.

Product Features

Intuitive touch screen interface with automatic frequency tracking
No oxidation traces – ultrasonic cleaning enables perfect welding without surface treatment, even on stained or oxidized metal surfaces
All workpieces can be welded without pre-processing – no soldering tin or soldering oil additives required
Welding head made of wear-resistant materials for long-lasting durability
Very low internal resistance solder joints with excellent conductivity and resistivity close to zero
Rapid welding process completed instantly within 0.01 to 2 seconds

Technical Specifications

Working voltage	AC220V/50Hz
Working air pressure	0.5~0.7Mpa
Ultrasonic frequency	40KHz (automatic tracking)
Power	800W (adjustable)
Welding time	0~1S
Drive form	pneumatic
Weight	about 60Kg
Control box size	L360W480H200mm
Generator size	L200W460H270mm

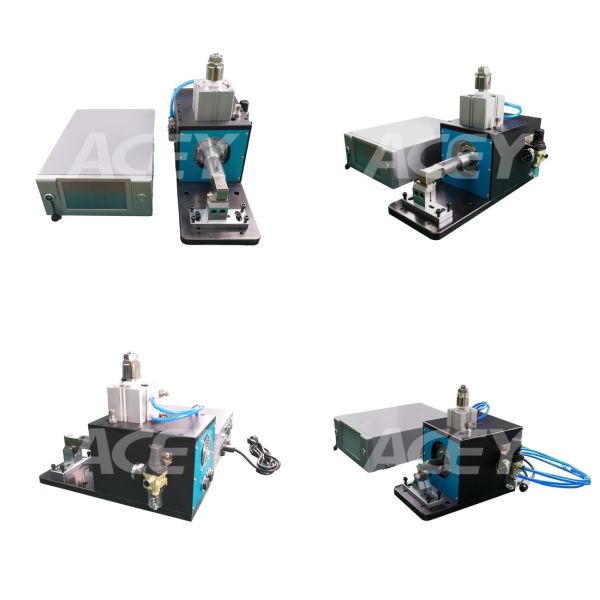

Product Display

Compact Ultrasonic Battery Tab Welding Machine for Pouch & Cylindrical Cell Assembly Images
